Catalog
Fiber & FTTH Product Portfolio
Seven illustrated product families, now including patch cords, pigtails, cable construction choices and private-label packaging alongside the existing technical selections.
FIBER. PASSIVES. OEM SUPPLY PROGRAMS.
Product catalogs and technical resources
Catalogs, selection guides, technical sheets and use cases to help define your next requirement.
Fiber & Access
Start with the Fiber & FTTH Product Portfolio for the full range. Use the connector catalog and selection guides for focused comparisons; the product sheets below cover individual models.
Catalog

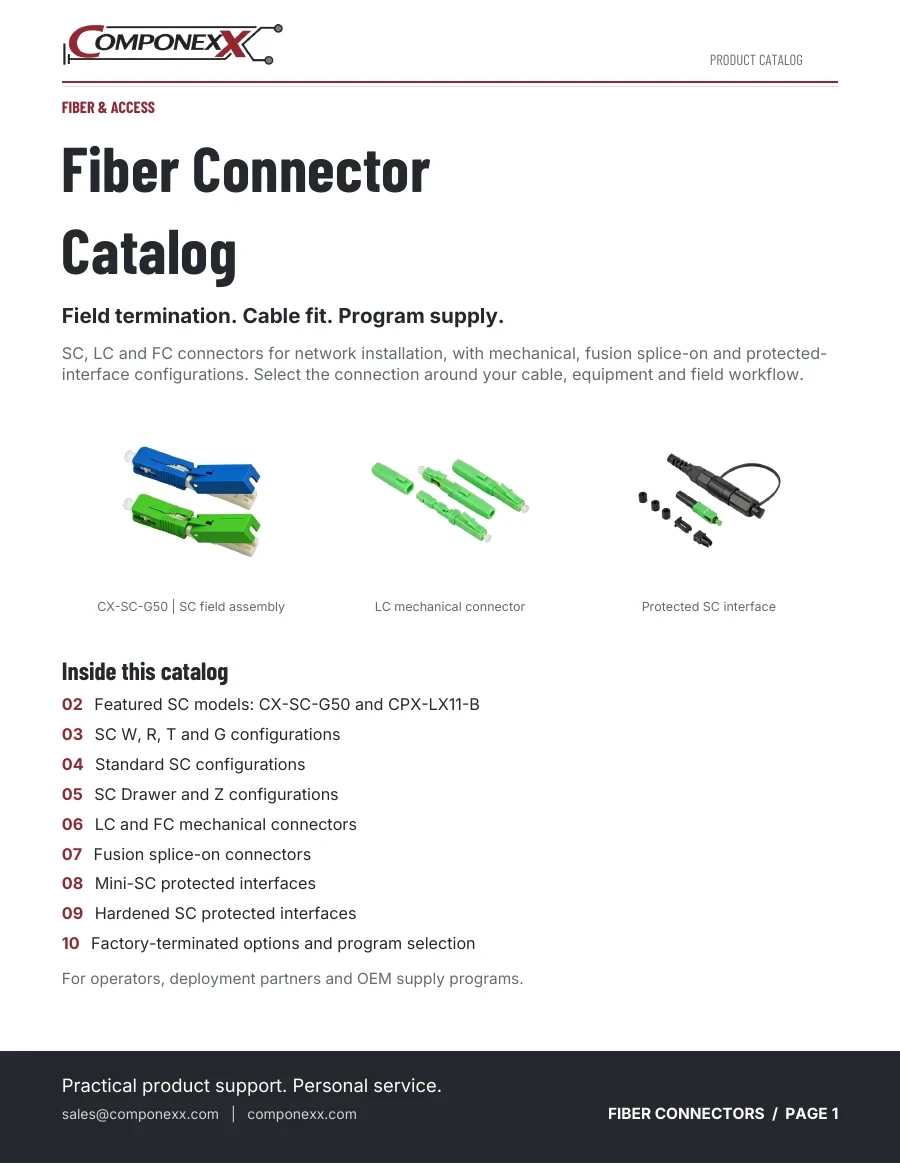

Fiber Connector Catalog
Compare mechanical field connectors, fusion splice-on options and protected interfaces. Includes separate CX-SC-G50 and CPX-LX11-B specifications, cable-fit tables and configurations for OEM programs.
Product guide

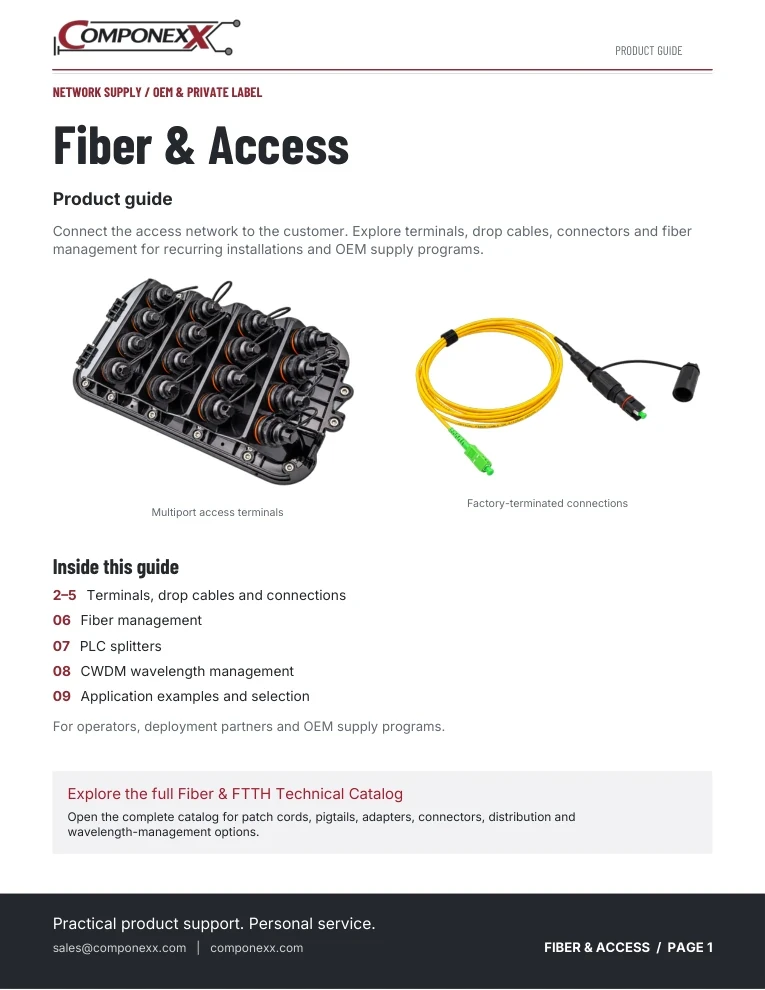

Fiber & Access Product Guide
FTTH terminals, drop cables, SC connections, PLC splitters and CWDM, with optical specifications and practical selection examples.
Selection guide

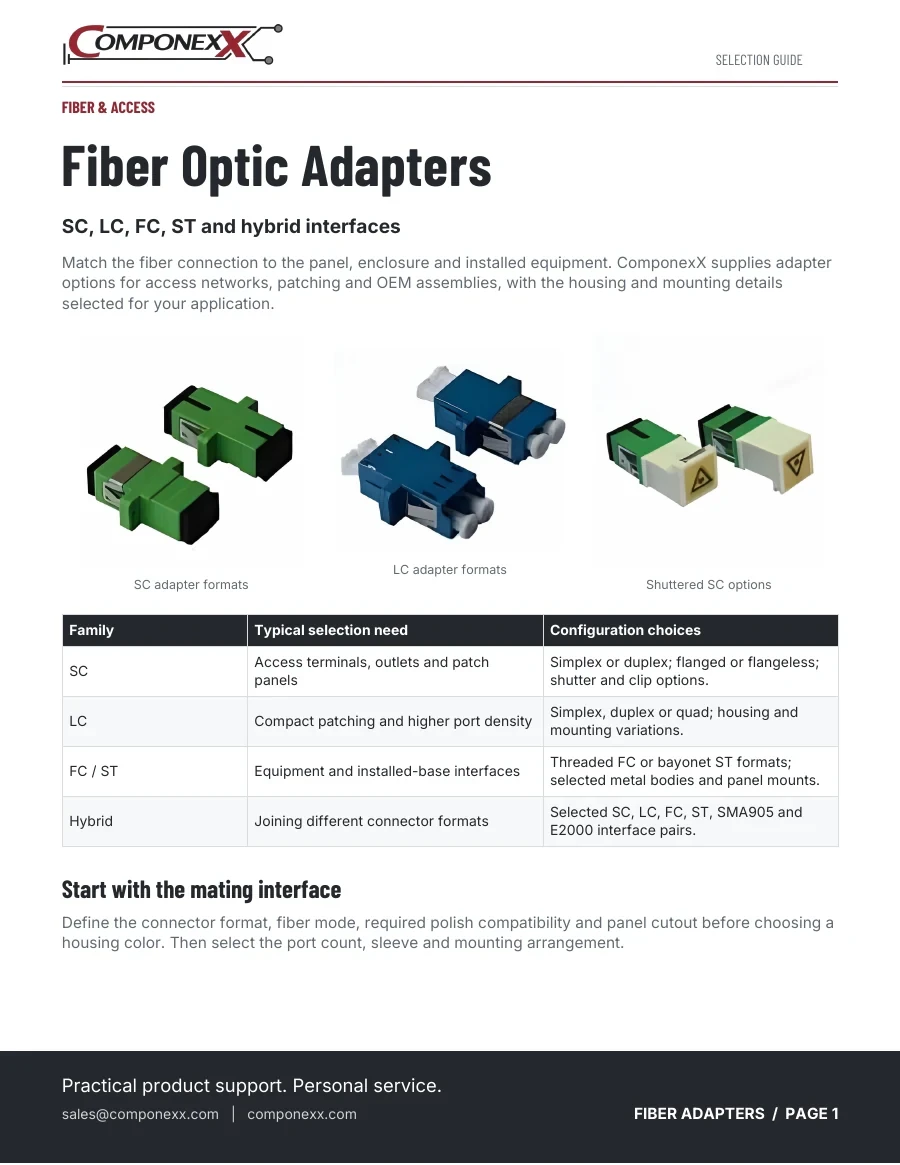

Fiber Optic Adapters
SC, LC, FC, ST and hybrid adapter options, with practical guidance on mounting, port count and matching the installed interface.
Selection guide

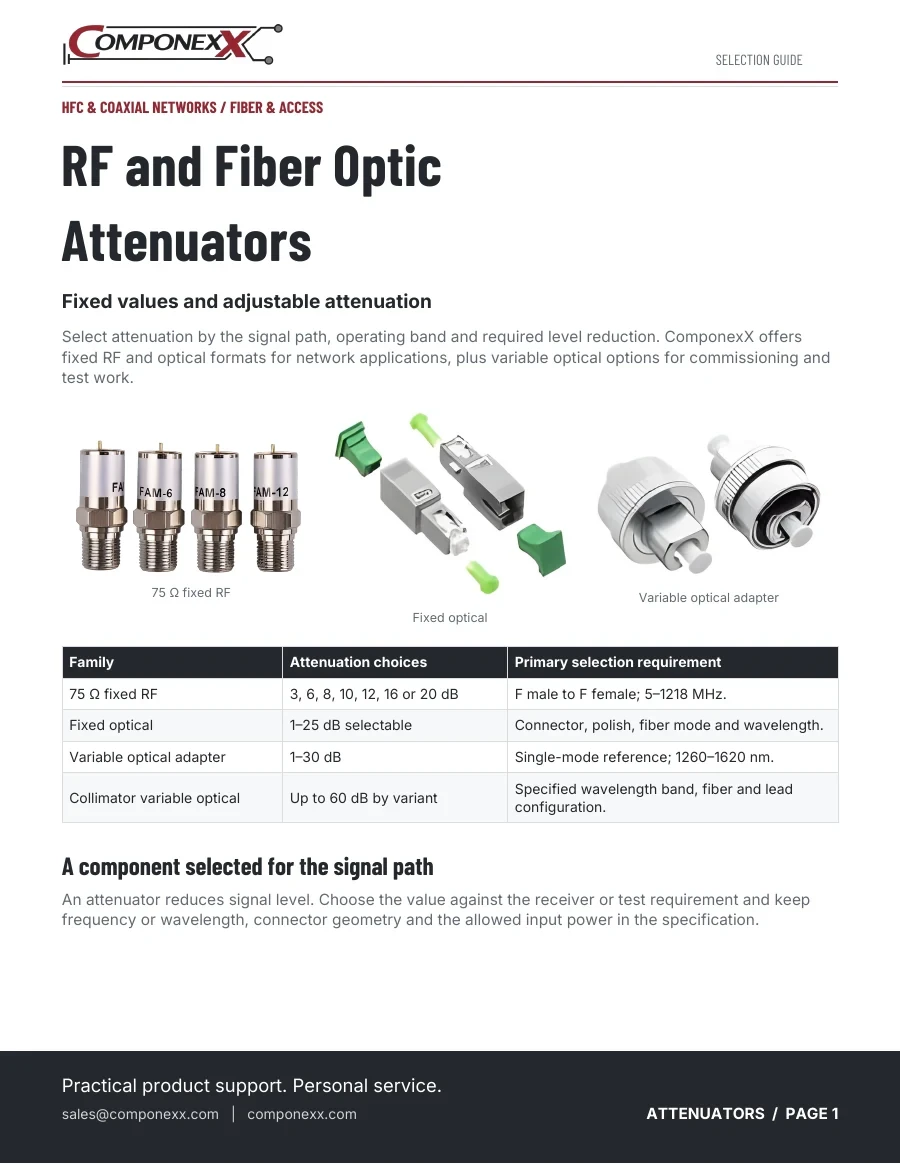

RF & Fiber Optic Attenuators
Fixed 75-ohm CATV attenuators and fixed or variable optical options, with separate frequency, wavelength and configuration tables.
Catalog

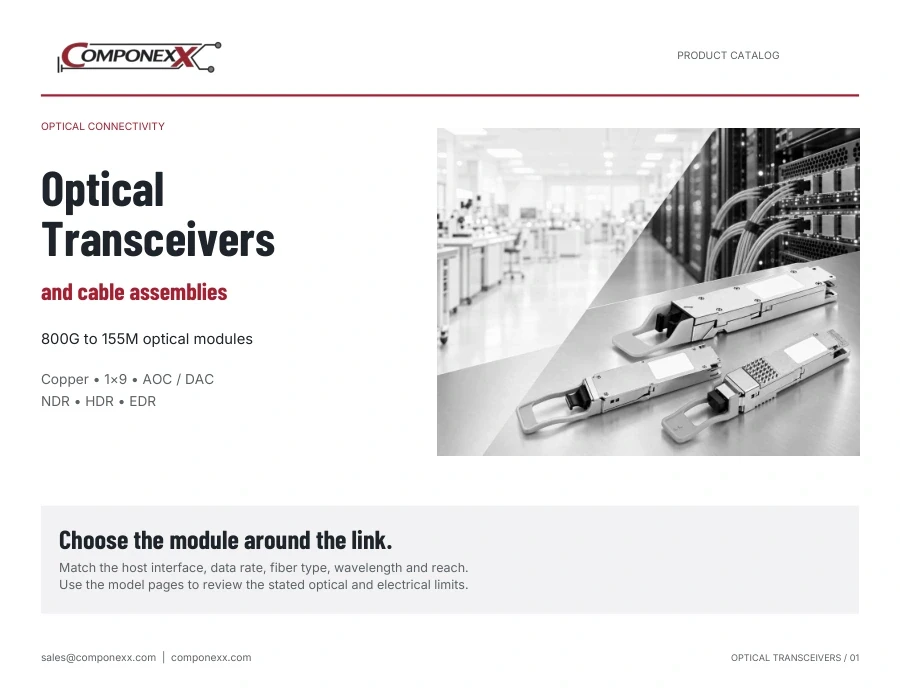

Optical Transceivers
Explore optical transceiver series and the configuration requirements for your application.
Product overview
Multiport Fiber Access Terminal
CX-MST-17/18
An outdoor fiber terminal with 17- or 18-port configurations, external hardened connections and optional PLC splitting for FTTH distribution networks.
Product overview
Splitter Access Terminal
CX-SAT
A compact optical splitter assembly with hardened preterminated leads for distributing one fiber connection to multiple drops in FTTH access networks.
Product overview
Fiber Interface & Slack Storage Enclosure
CX-31 Series
Bring fiber termination, splice protection and slack storage together at the transition between outside-plant cable and customer premises.
Product overview
Fiber Access Terminal Closure
CX-FATC-003
Compact enclosure for feeder-to-drop fiber splicing and distribution in FTTH and FTTB deployments. Supports up to 96 splices and 24 drop cable ports, with wall, pole and aerial mounting options.
Product overview
Peelable MicroDrop Cable
CPX-PMDC Series
Indoor/outdoor peelable fiber drop cable with factory-terminated options, connecting the outside-plant demarcation point to the customer ONT or fiber jack.
Product overview
Dielectric FTTH Drop Cable
CX-DROP-2X3
Compact outdoor FTTH drop cable with G.657.A2 single-mode fiber, dual FRP strength members and a UV-stabilized HDPE jacket. Available for field-cut installations and configured connector assemblies.
Product overview
Hardened SC/APC Patch Cord
CX-OPT-SA-SA
Connect a hardened fiber interface to a standard SC/APC port with a factory-terminated single-fiber assembly. Its 3.0 mm round LSZH cable and aramid reinforcement support routing through cabinets and enclosures.
Product overview
Hardened FTTH Drop Cable Assembly
CX-OPT-SCAPC-PC
Prepare FTTH access connections with a factory-terminated, hardened single-fiber assembly. A 5.0 mm round LSZH jacket, aramid reinforcement and stainless-steel mesh support the cable; specify length, both end interfaces and installation conditions.
Product overview
Hardened Fiber Drop Pigtail
CX-OPT-SCAPC-PT
Bring a prepared hardened SC/APC connection to an FTTH drop route. The single-fiber, flat figure-8 pigtail combines FRP fiber support with a steel messenger; select length and opposite-end preparation for the installation.
Product overview
SC Field-Assembly Connector
CPX-LX11-B
Terminate FTTH drop cable in the field using a pre-polished ferrule and mechanical fiber alignment. SC/APC and SC/UPC versions support the specified 2.0 × 3.0 mm and 2.0 × 5.0 mm cable profiles.
Product overview
SC Field-Assembly Connector
CX-SC-G50
Terminate 2 × 3 mm FTTH drop cable in the field using a pre-polished ferrule and mechanical fiber alignment. SC/APC and SC/UPC versions provide a 51 mm connector body with model-specific optical specifications.
Product overview
SC Field-Assembly Connector
CX-SC-G58-ANT
Prepare SC terminations in the field using a pre-polished ferrule and mechanical alignment. APC and UPC versions support specified flat and round cable profiles without field polishing, epoxy or fusion splicing.
Product overview
SC Splice-On Connector
CX-SC-FST
Place the fusion splice inside the SC connector body for a compact, protected termination. Select APC or UPC and confirm the connector holder, splicer setup and fiber preparation for the installation.
Product overview
MPO–LC Fiber Cassette
12F / 24F · OS2 · LC/UPC
OS2 singlemode cassette with blue LC/UPC front interfaces and an integrated MPO-LC fan-out. Available in 12-fiber and 24-fiber configurations.
HFC & Coaxial Networks
Use the HFC & Coaxial Technical Catalog to compare models and electrical specifications. The connectivity guide provides a shorter introduction, and the product sheets cover individual configurations.
Catalog
HFC & Coaxial Technical Catalog
Model selections and frequency-specific electrical limits for splitters, taps, MoCA and DLPS coaxial protection.
Product guide

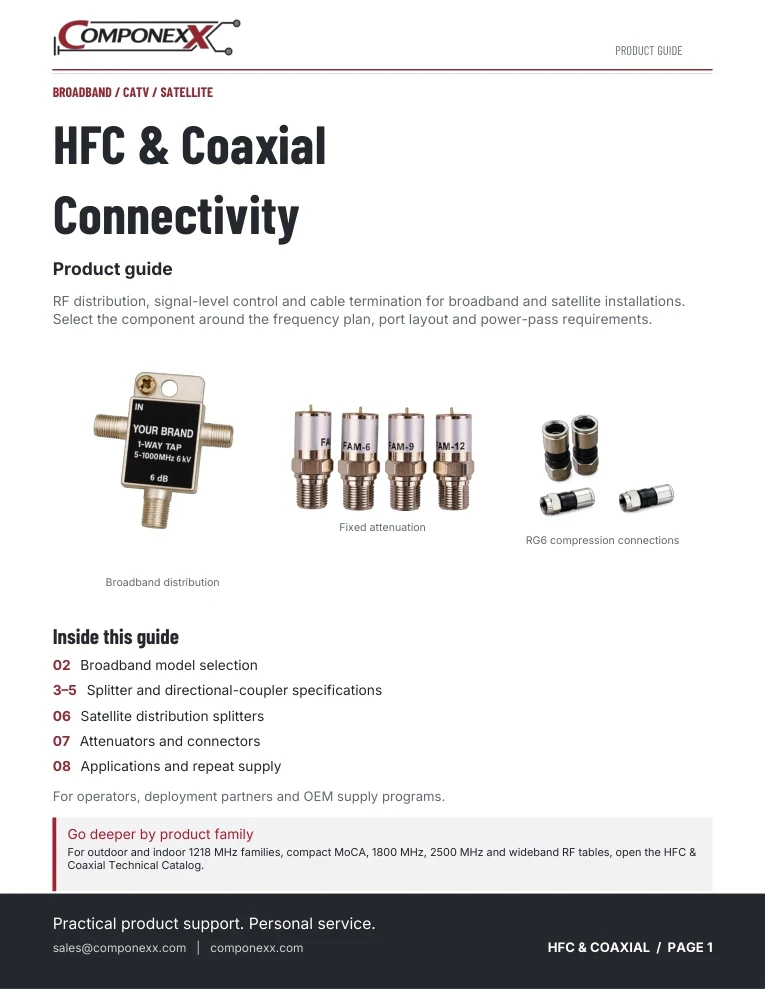

HFC & Coaxial Connectivity Guide
Broadband and satellite splitters, directional couplers, attenuators and RG6 connectors, including model-specific RF performance tables.
Product guide

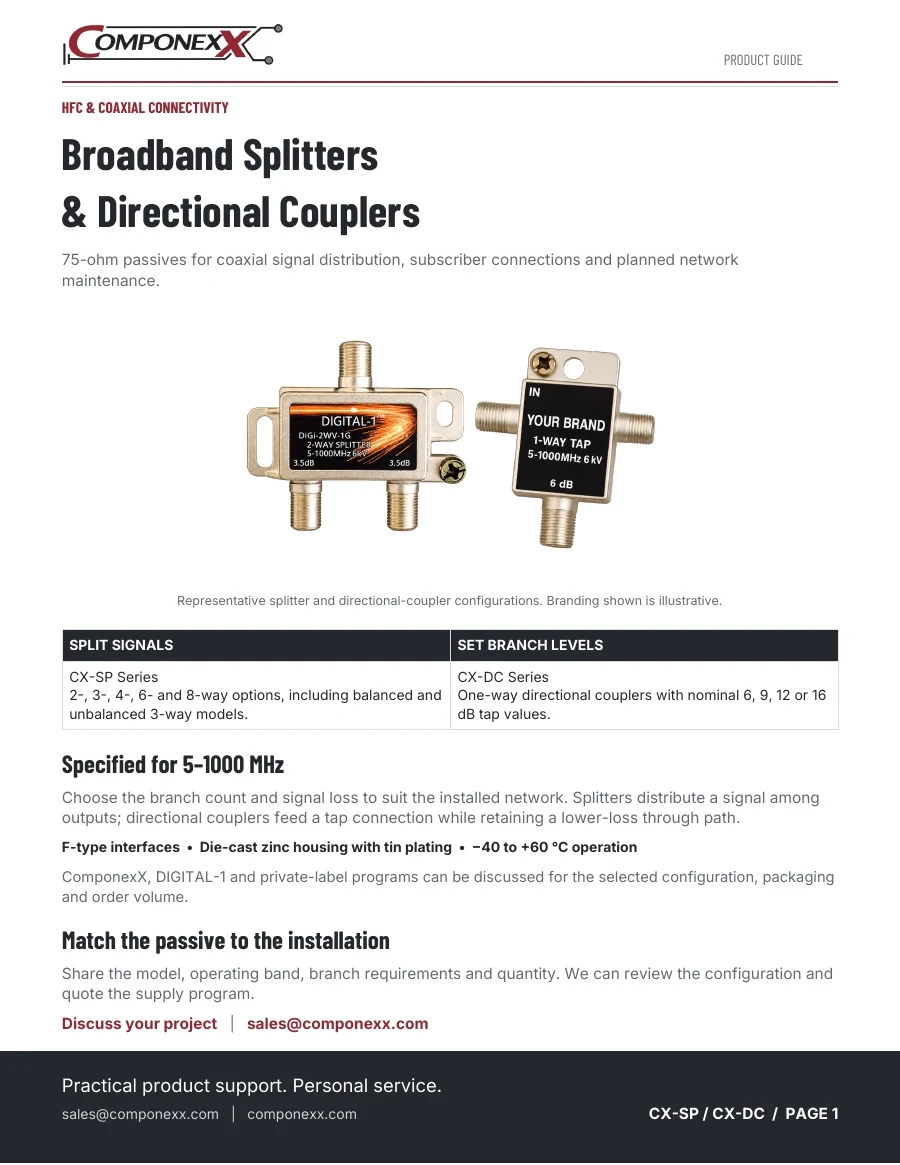

Broadband Splitters & Directional Couplers
75-ohm, 5–1000 MHz splitters and one-way directional couplers, with model selection and upper-band electrical limits.
Product overview
RG6 Compression F Connector
CPX-RG6-CF
Compression termination for RG6 coaxial cable, with weather-resistant sealing. Cable and tool compatibility are selected for the installation.
Product overview
Mini Coaxial Fixed Attenuator
CPX-ATT Series
Compact inline attenuation for signal-level control in 75-ohm coaxial networks.
Product overview
All-Ports Power-Pass Splitters
CX-202C / CX-203C
Distribute satellite RF signals to two or three outputs while retaining diode-steered DC power paths on all ports. The 75-ohm, 5–2500 MHz models include band-specific loss and isolation data for selecting the distribution layout.
Product overview
MoCA Coaxial Splitters
5–1675 MHz MoCA splitter selection: the horizontal/vertical 2–8-way range and a separately specified compact 2–4-output platform, with family-specific RF limits.
Product overview
Coaxial Drop-Line Surge Protection
ComponexX DLPS surge protectors in mounted, inline and integrated MoCA-filter configurations, with private-label and recurring supply options.
Product overview
HPNA Coaxial Splitters
CX-HPNA Series
Low-isolation F-port splitters for specified HPNA coaxial applications; 4–1500 MHz, with 2-, 3-, 4- and 6-way models.
Outside Plant
Choose Anchoring, Poleline & Aerial Hardware for the complete aerial-support range. Earth Anchors focuses on ground support, soil, installation and guy connections. Individual sheets cover specific components.
Catalog

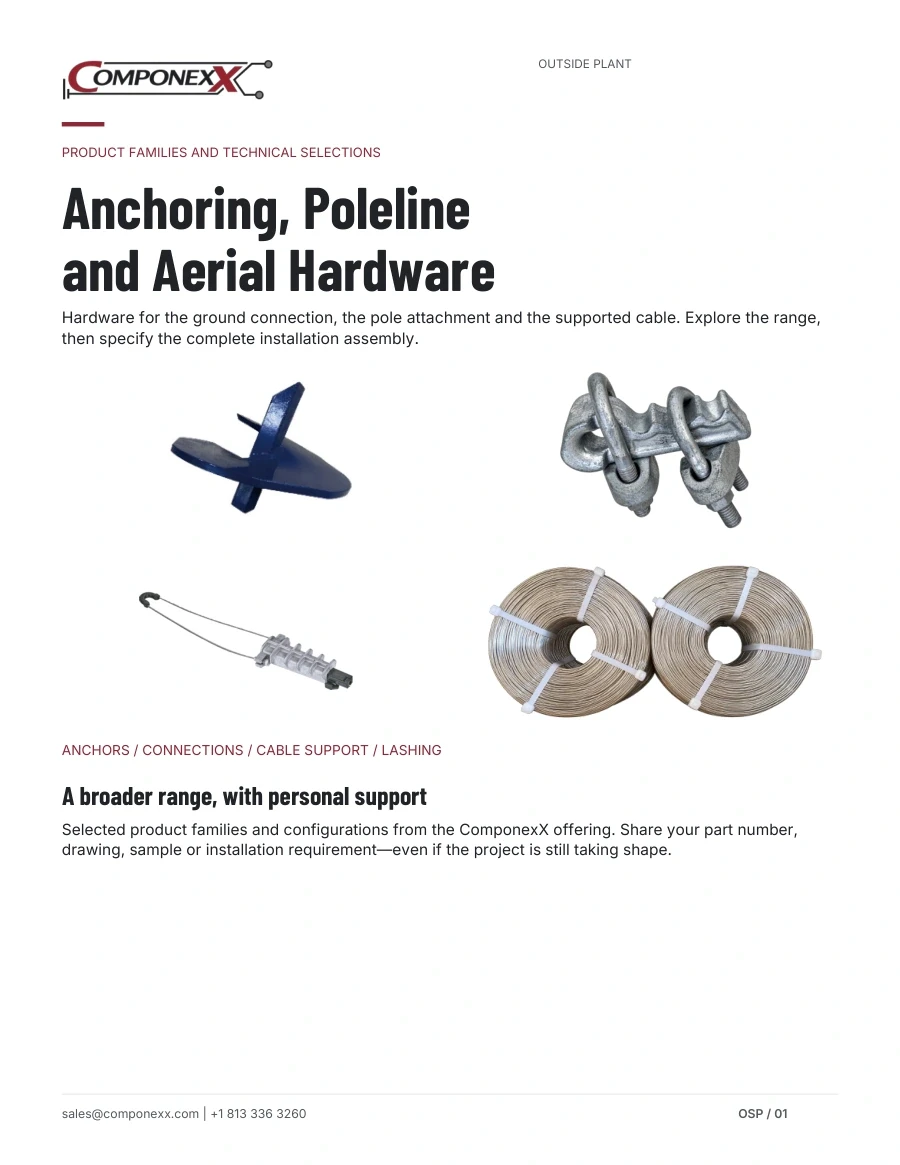

Anchoring, Poleline & Aerial Hardware
The broader outside-plant catalog: ground anchors, helical piles, rods and guy hardware, plus FTTH cable supports, pole fittings and lashing wire, with practical selection guidance.
Catalog

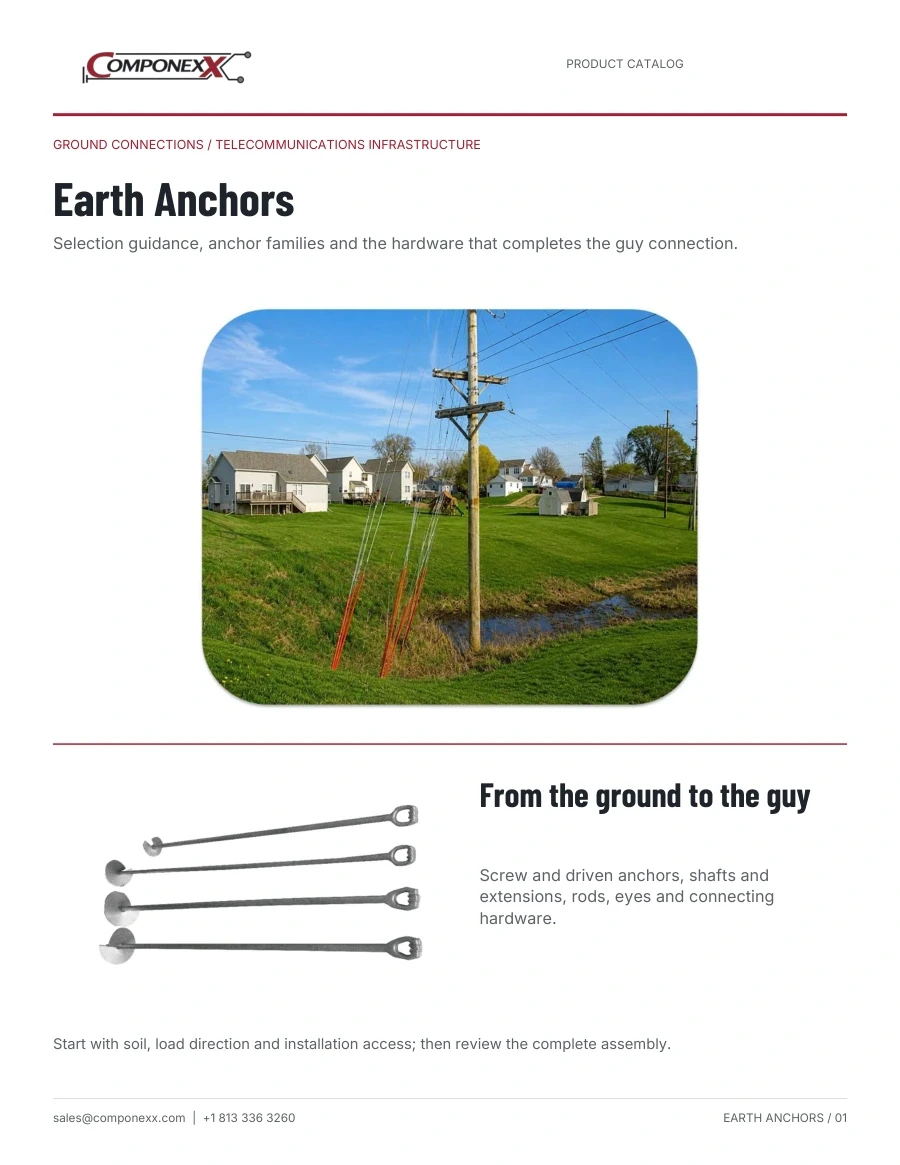

Earth Anchors & Ground Support
Screw, socket-drive, helical-pile and driven anchor systems with illustrated soil, load-path and installation guidance, current product references and complete guy-connection selections.
Product overview
Anchor Rod Auxiliary Eye
CPX-ARE
Galvanized auxiliary eye with two U-bolt clamps for an additional guy attachment point on an existing anchor rod; includes dimensions and material details.
Product overview
Stainless-Steel Lashing Wire
CPX-LW Series
Secure aerial fiber and coaxial cables to a supporting messenger strand. Choose 302, 316 or 430 stainless steel and compare wire diameter, coil length and average strength figures for the environment and lashing equipment.
Product overview
Drop Cable Tension Clamp
CPX-DTC
Support the specified 5.3 × 2 ±0.2 mm flat mini figure-8 drop cable with a nylon PA6 body and stainless-steel clip. Review cable fit and the distinct operating-load and pre-break strength values before selection.
Product overview
Installation & Maintenance Supplies
Cable ties, stainless banding, cable and asset identification, and fiber-care supplies for telecom installation and maintenance.
Network Continuity & Power
Compare DC backup and AC UPS options in the Power & Backup Product Catalog. Use individual sheets for product specifications, and the use cases below for ONT continuity and private-label power accessories.
Catalog
Power & Backup Product Catalog
Small and medium-sized DC backup and AC UPS solutions, practical application guidance and an anonymous customer case on branded power accessories.
Product overview
800VA Line-Interactive UPS
CPX-UPS-800
Provide battery backup and automatic voltage regulation for compatible AC-powered network equipment, computers, POS terminals and security systems. The 800 VA / 480 W unit supports load-based selection; runtime depends on connected equipment and battery condition.
Product overview
ONT DC Mini-UPS
CX-1202UPS-6000mAh
Compact 12 V DC battery backup for compatible ONTs and gateways, helping maintain power through brief interruptions.
OEM & Private Label
Start with the capabilities overview to understand the program options. The separate white-label power-accessory use case shows how product refinement, packaging and launch preparation fit together.
Capabilities overview

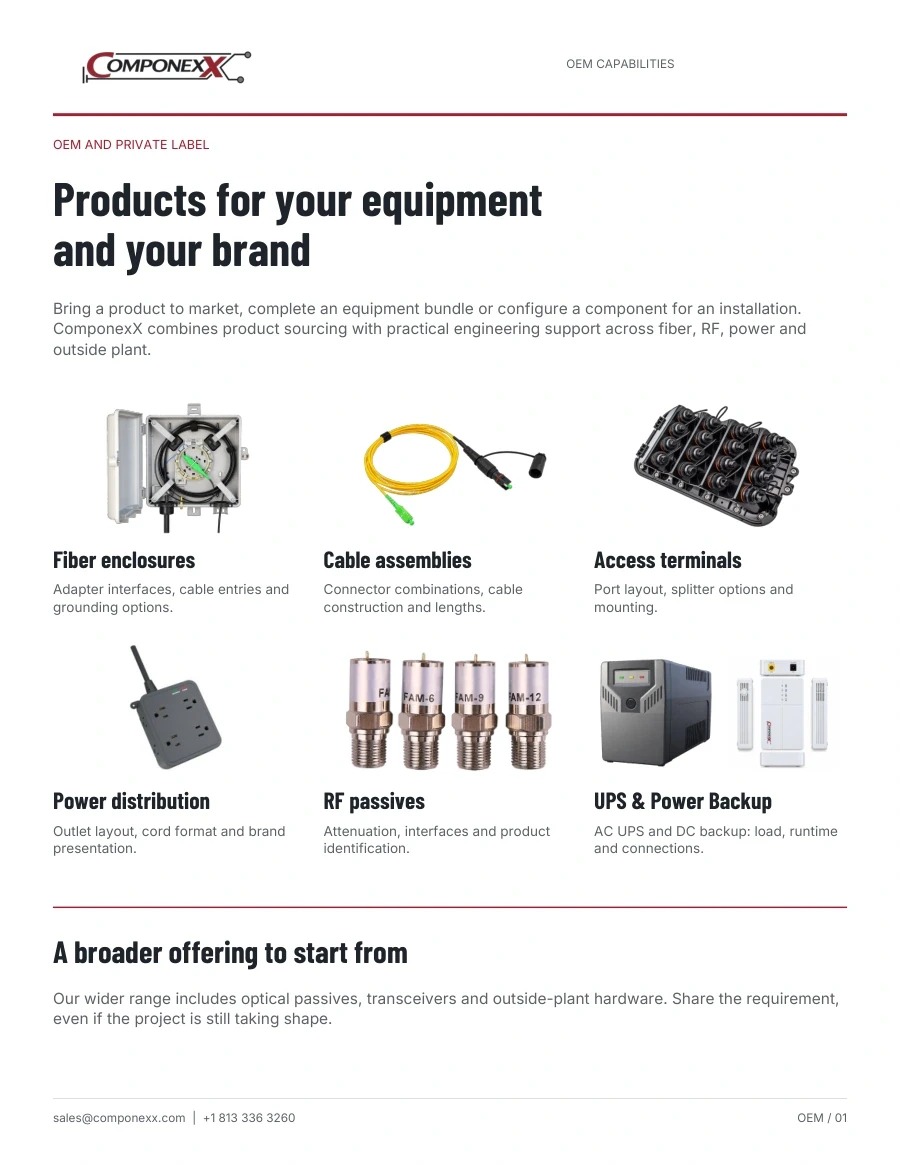

OEM & Private Label Capabilities
Explore established products, private-label programs and custom configurations for telecom, power and customer equipment.
Problems, solutions and collaboration
Use cases
See how ComponexX helps keep customer equipment powered and works with brands to develop products, packaging and launch materials.
Use case
Broadband Continuity Solutions
A brief power interruption can start a much longer restart. See how keeping the ONT powered helps avoid that cycle, with practical installation examples.
Read the use case Discuss a similar application
Use case
White-label power strips and surge protection
How ComponexX worked with a brand to refine power accessories, develop the boxes and prepare materials for launch under the customer's own name.
Read the use case Discuss a similar applicationThese are selected configurations from our broader portfolio. Send a part number, drawing or requirement, even if your project is still taking shape.
Discuss a requirement
